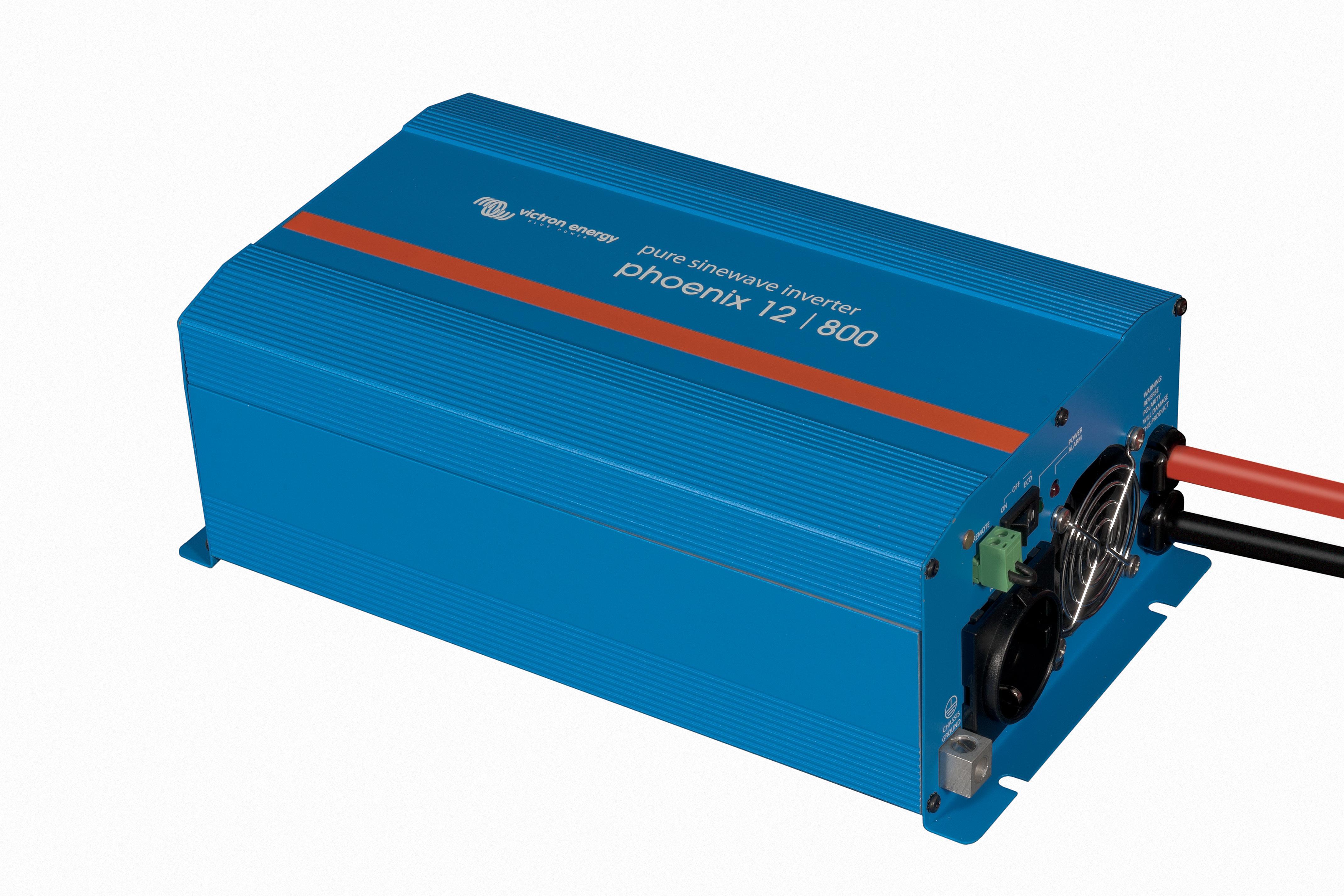

The Victron Phoenix 12/800 and 48/800 inverters have the following features:
The new Victron Phoenix 24/800 inverter is an upgrade to the previous version. As standard, it now includes a number of additional features, such as the VE.Direct port, making it far easier to communicate with the inverter.
The VE.Direct port can be connected to:
| PHOENIX INVERTER MODEL | 12/800 | 12/1200 | |
24/800 | 24/1200 | ||
48/800 | 48/1200 | ||
| Cont. AC power at 25 °C (VA) (3) | 800 | 1200 | |
| Cont. power at 25 °C / 40 °C (W) | 650 / 560 | 1000 / 850 | |
| Peak power (W) | 1500 | 2200 | |
| Output AC voltage / frequency (adjustable) | 230VAC or 120 VAC +/-3% 50Hz or 60Hz +/-0.1% | ||
| Input voltage range | 9,2 - 17 / 18,4-34,0 / 36,8 - 62,0V | ||
| DC low shut down (adjustable) | 9,3 / 18,6 / 37.2V | ||
| Dynamic (load dependent) DC low shut down | Dynamic cut-off | ||
| DC low restart and alarm (adjustable) | 10,9 / 21,8 / 43,6V | ||
| Battery charged detect (adjustable | 14,0 / 28,0 / 56,0V | ||
| Max. efficiency (%) | 90 / 90 / 91 | 91/ 91 / 92 | |
| Zero-load power (W) | 6,5 / 7 / 9,5 | 7 / 8 / 10 | |
| Default Zero-load power in Eco mode | 1 / 1,5 / 3,0 | 1 / 1,5 / 3,0 | |
| ECO mode stop and start power setting | Adjustable | ||
| Operating temperature range | -40 to +65oC (fan assisted cooling) | ||
| Humidity | max 95% | ||
| ENCLOSURE | |||
| Material & Colour | Steel chassis and plastic cover (blue Ral 5012) | ||
| Battery-connection | Screw terminals | ||
| Max cable cross-section | 25/10/10mm2 / AWG 4/8/8 | 35/25/250mm2 / AWG 2/4/4 | |
| Standard AC outlets | 230V: Schuko (CEE 7/4), IEC-320 (male plug included) UK (BS 1363), AU/NZ (AS/NZS 3112) 120V: Nema 5-15R | ||
| Protection category | IP21 | ||
| Weight (kg / lbs) | 5,5 / 12 | 7,4 / 16,3 | |
| Dimensions (hxwxd in mm) | 105x216x305 (12V model: 105x230x325) | 117x232x327 (12V model: 117x232x362) | |
| ACCESSORIES | |||
| Remote on-off switch | Yes | ||
| Automatic transfer switch | Filax | ||
| STANDARDS | |||
| Safety | EN/IEC 60335-1 / EN/IEC 62109-1 |
||
| EMC | EN 55014-1 / EN 55014-2 / IEC 61000-6-1 / IEC 61000-6-32004/104/EC |
||
| Automotive Directive | EN 50498 |
||
